Product Description: Soft Touch BOPA Film
The ULTRANY LHA-12 µm model of Soft Touch BOPA Film is the leading substrate for advanced tactile applications. Through Lisim technology (Linear Simultaneous Stretching), Soft Touch BOPA Film achieves nearly perfect isotropy and maximum dimensional stability. Additionally, it features the lowest and most uniform heat-shrinkage rates of less than 2.0% to ensure that the film will remain flat during the most intense drying and UV curing processes. Due to the fact that Soft Touch BOPA Film prevents warping and deformation, it is the number one choice for touch-feel film substrates for high-end book covers and luxury business cards.
Ultra-thin (12µm) BOPA film profile of Soft Touch BOPA Film represents the cutting-edge of high-performance packaging and lamination. Downstream users can obtain significant thinning benefits from using less raw material to cover the same surface area. In addition to supporting global sustainability initiatives, the ultra-thin profile of the bopa film for soft touch coating also enhances the softness and conformability of the final laminated product. Although the profile of Soft Touch BOPA Film is extremely thin, it still retains excellent tensile strength and toughness to ensure that products produced with the velvet touch film base are resistant to folding and scratches throughout their entire service life.
Soft Touch BOPA Film is developed to optimize wide width processing greater than 2000 mm for high-speed coating equipment. Therefore, it is possible to produce a stable surface for water-based or UV coatings to create frosted, silky, or velvet textures. In addition to its excellent flatness properties, Soft Touch BOPA Film features a massive capacity of 150,000 tons/year for the international printing and lamination industries. If Soft Touch BOPA Film is selected as a touch-feel film substrate for a high-end tactile lamination project, the risk of producing a wrinkled finish is eliminated.
Benefits of Soft Touch BOPA Film
a. Maximum Flatness: Due to the nearly perfect isotropy and the minimal heat shrinkage, warping during the coating and drying phases is prevented.
b. Economic Efficiency: The ultra-thin bopa film 12µm reduces material consumption and unit prices while increasing yield per roll.
c. Enhanced Tactility: The bopa film for soft touch coating is very thin and elastic, making the final product softer and more luxurious to the touch.
d. Wide Width Processing: Supports slitting widths greater than 2000 mm for high-efficiency industrial coating and printing lines.
e. Resistance to Mechanical Damage: High tensile strength ensures that laminated products, such as business cards, resist wear and tear.
| Thickness μm | Corona | Width mm |
| 12/15/25 | One Side or Both Sides | 300-1500 |
Basic Info.
| Model NO. | ULTRANY® | Thickness | 12/15/25μm |
| Transport Package | Carton Package | Specification | LHA-Customised Model |
| Trademark | Changsu | Origin | China or Indonesia |
ULTRANY® LHA Customised Model – Application (Soft Touch BOPA Film):
Luxury Chocolate Gift Sets: Using BOPA film for soft touch coating to create an upscale, velvety textured outer wrapping for gift sets.

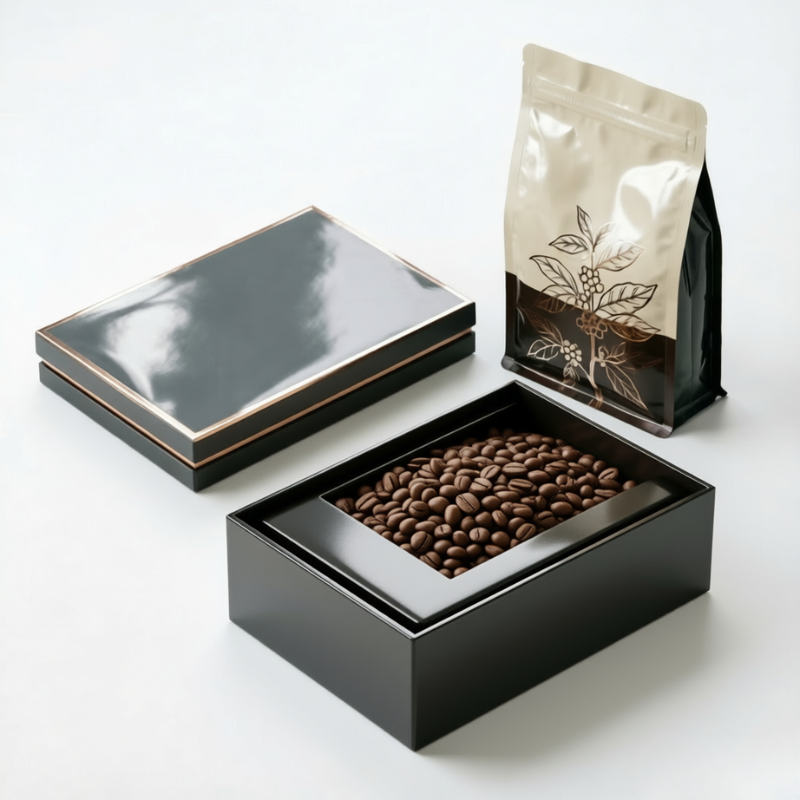

High-End Coffee Bag Packages: Applying ultra-thin bopa film 12µm as a touch-feel film substrate for a matte, sophisticated coffee bag presentation.
Bakery Bags (Artisan): Creating a soft, organic sensation with the use of velvety touch film base technology for speciality bread packages.
Tea Bags (Speciality): Assuring a silky tactile sensation for luxury tea brands with the use of Soft Touch BOPA Film.
ULTRANY® LHA Customised Model BOPA Film can also be utilised for – Non-Food Applications:

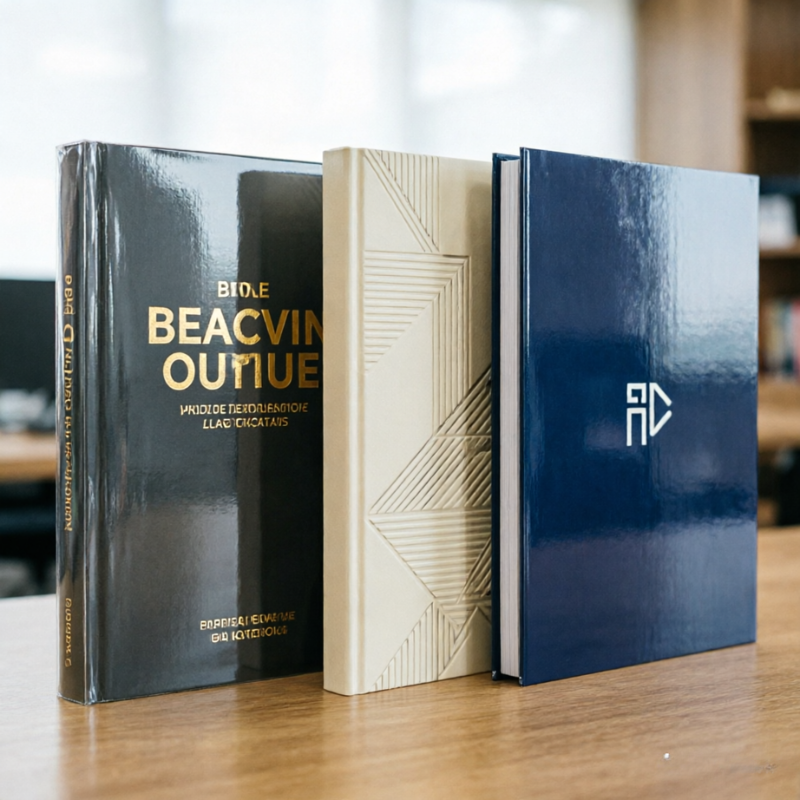

Hardcover and Hardcover Publications: Providing a durable, velvety touch film base for high-quality hardcover and softcover publications.

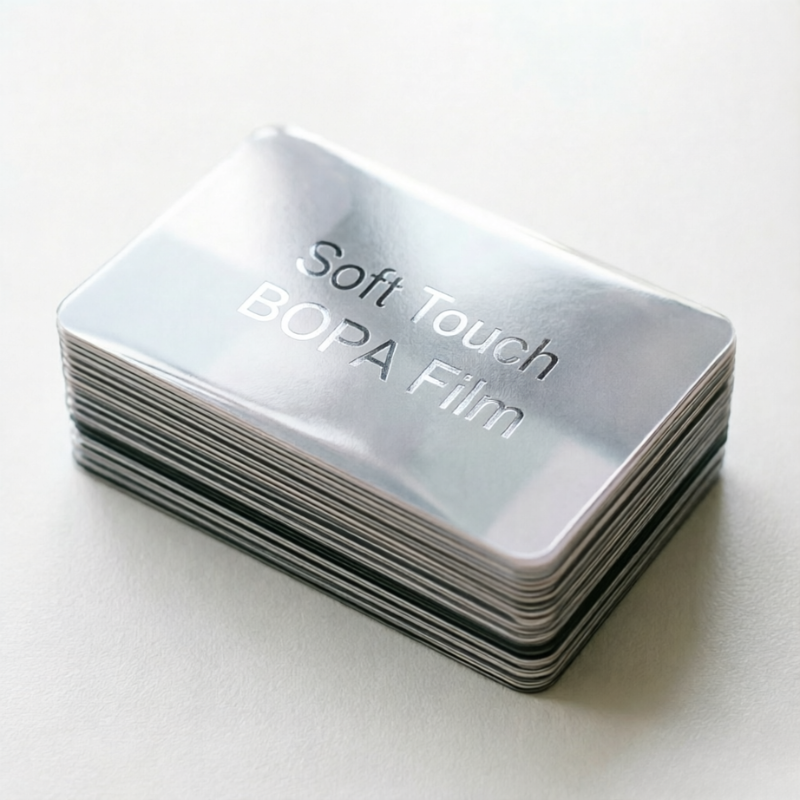

Premium Business Card Stock: Using ultra-thin bopa film 12µm as a touch-feel film substrate for scratch-resistant, luxurious networking materials.

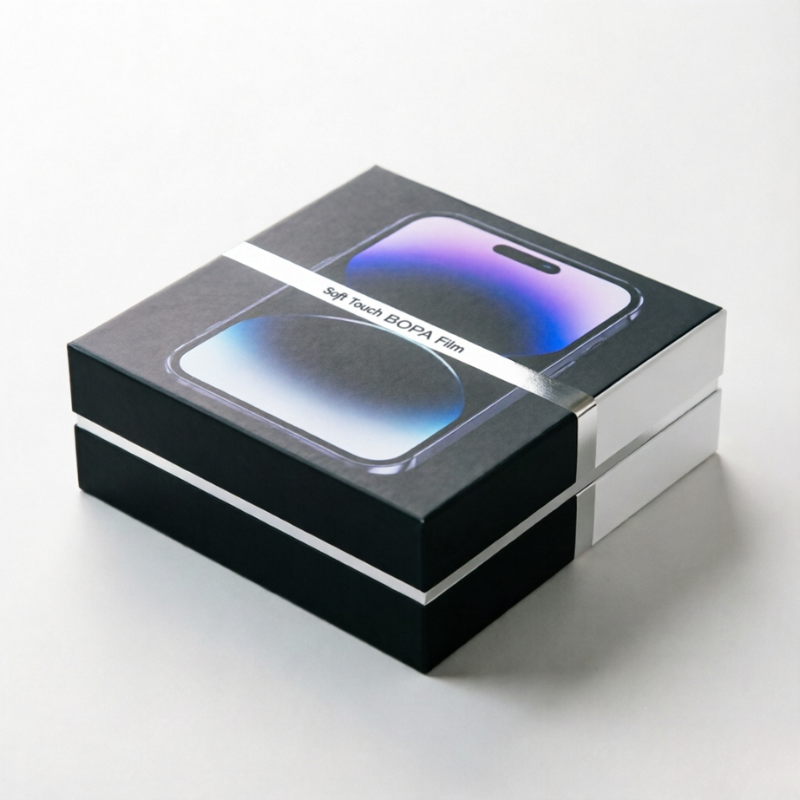

Smartphone and Wearable Devices: Increasing the unboxing experience of electronic devices using bopa film for soft touch coating.
Folding Cartons (Skincare): Creating a sophisticated, high-end consumer feel with the application of velvety touch film base to luxury skincare box packaging.
Product Parameters
| Typical Properties | Test Method | Units | Typical Value | |
| Thickness | - | μm | 12 | |
| Average Thickness Tolerance | ISO4593 | % | ±3.0 | |
| Tensile Strength | MD | ASTM D882 | MPa | 220 |
| TD | 240 | |||
| Elogation at Break | MD | ASTM D882 | % | 80 |
| TD | 120 | |||
| Heat Shrinkage | MD | ASTM D1204 (160ºC, 5min) | % | ≤ 2.0 |
| TD | ≤ 2.0 | |||
| Dynamic COF | Static/Kinect | ASTM D1894 | - | 0.55/0.40 |
| Surface Tension | Treated Side | ASTM D2578 | mN/m | 54 |
| Untreated Side | 39 | |||
| Puncture Resistance | GB/T 10004-2008 | N | 7.5 | |
| Haze | ASTM D1003 | % | 4.0 | |
| Oxygen Transmission Rate | 23℃, 50%RH | cc/㎡.day.atm | 70 | |
Length (m): Standard 4000 ~ 24000
With(mm): 300-1500
Paper core (inches): 3, 6
Packaging: 9, 4 or 2 rolls/pallet
Remark:
Data in the above section is released to provide a comprehensive and reliable reference of normal film behaviour. Data in the above section should only be referenced for comparison purposes.
As we continue to innovate, Changsu reserves the right to change product characteristics at any time without prior notice.
Got Questions for ULTRANY® LHA Customised Model BOPA Film for Soft Touch Coating? We've Got Answers!
How does this film prevent curling problems in soft-touch lamination?
Soft Touch BOPA Film uses LISIM technology to provide near-perfect isotropy. This results in a bopa film for soft touch coating with extremely low heat shrinkage (less than 2.0%) to provide the ultimate flatness required to prevent warping or curling during the drying and UV curing process of the touch-feel film substrate.
What are the sustainability advantages of using a 12-micron film?
The ultra-thin bopa film, 12µm thickness, enables customers to achieve significant source reduction. Customers reduce their environmental footprint while maintaining the mechanical properties of the velvet touch film base when they use less plastic material to cover the same surface area.
Can Soft Touch BOPA Film be processed on wide-width coating machines?
Yes, Soft Touch BOPA Film is designed for efficient production and can be cut into widths of more than 2000 mm. Therefore, it is suitable for large-scale coating equipment and minimises the necessity for splicing and increases the yield of the touch-feel film substrate.
Does the thinness of the 12-micron film impact the durability of book covers?
No. Despite being an ultra-thin BOPA film, 12µm, Soft Touch BOPA Film maintains high tensile strength and toughness due to simultaneous stretching. Thus, the mechanical resistance of any application of the velvet touch film base remains intact and extends the service life of the completed product.
Are there any other types of tactile coatings that can be applied using this film?
Soft Touch BOPA Film is a suitable substrate for a variety of coating processes, such as water-based and UV-curable coatings. Whether a silky, frosted, or velvety texture is desired, the bopa film for soft touch coating provides the necessary consistency to achieve a superior presentation of the touch-feel film substrate.
What is the global supply capacity for this special tactile film?
Our annual capacity for the BOPA range amounts to 150,000 tons. Consequently, we offer a constant and expanding global supply of ultra-thin BOPA film, 12µm and velvet touch film base materials for large-scale global orders.
Service Advantages
1
24/7 Technical Consultations
Our experts are available to answer questions regarding optimal coating adhesion and flatness for your specific tactile lamination equipment 24 hours a day.
2
Consistent Global Supplies
Due to our 150,000-ton annual capacity, we can assure a consistent supply and fast delivery of ultra-thin BOPA film 12µm for your large-scale international orders.
3
Customised Slitting Services
We provide precise slitting for ultra-wide widths of up to and above 2000 mm to meet the requirements of your high-volume production.
Certificates
FSSC 22000
ISO 22000:2018
MSDS

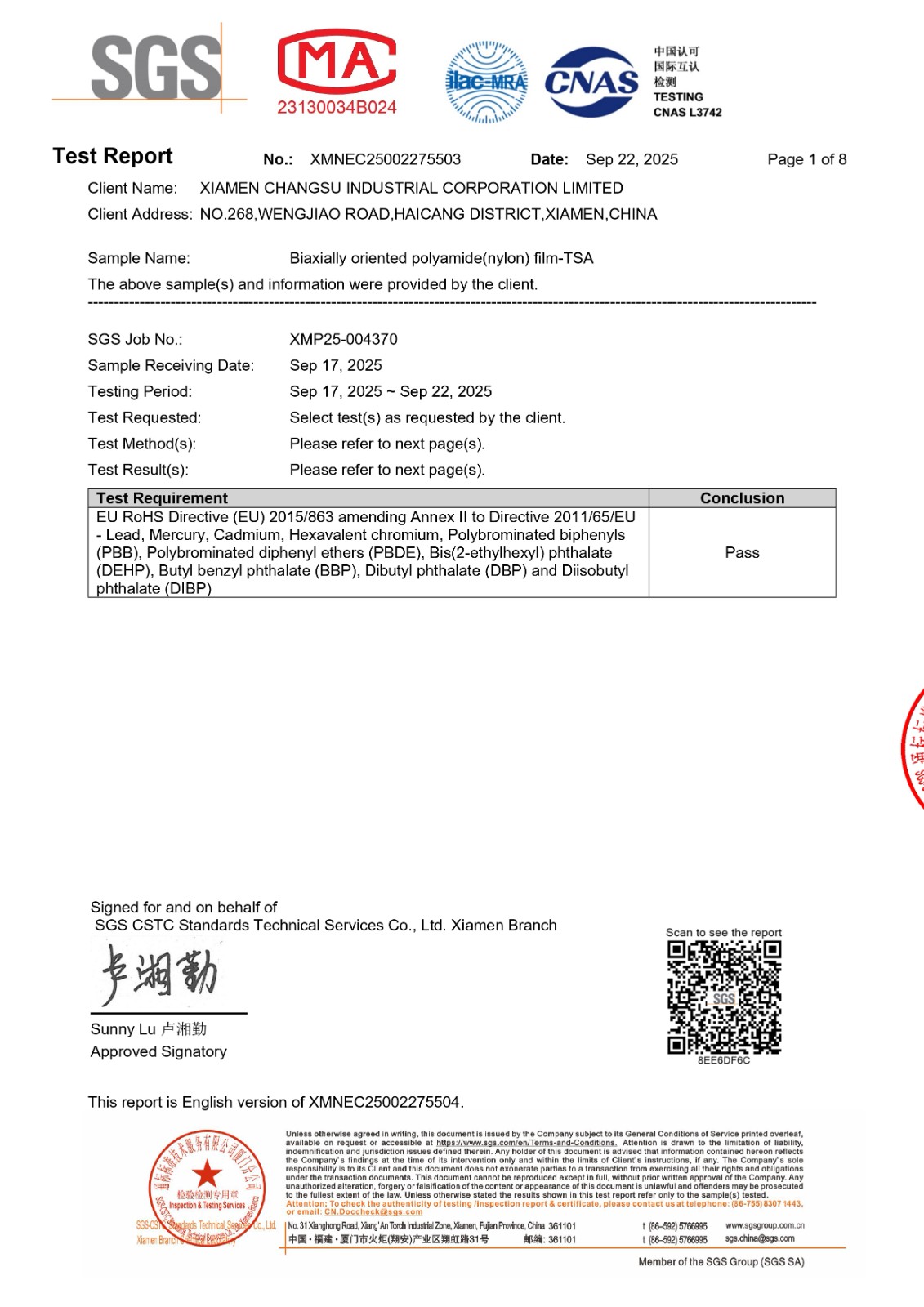

ROHS

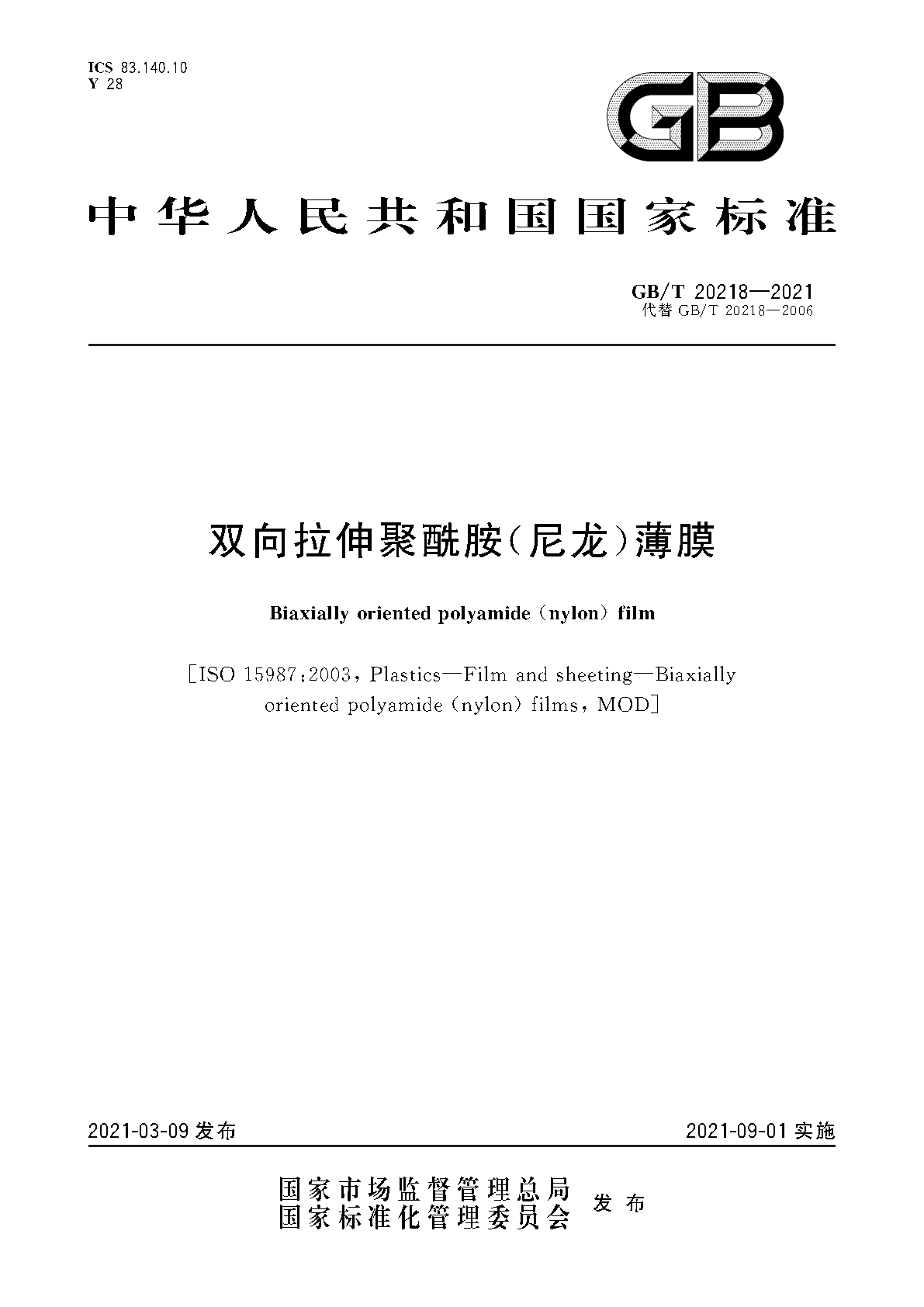

ISO 15987:2003
ISO 14001:2015
ISO9001
IATF 16949:2016
Introduction of the Company
Xiamen Changsu Industrial Co., Ltd. (Changsu) was established in 2009. Xiamen Changsu Industrial Co., Ltd. is a well-known technological film material company integrating research & development, intelligent manufacturing and global utilisation. Xiamen Changsu Industrial Co., Ltd. operates two production locations in China and Indonesia with a total of 450,000 m². Xiamen Changsu Industrial Co., Ltd. is regarded internationally as a provider of high-performance films.
Under the vision "Better Materials, Better Life", Xiamen Changsu Industrial Co., Ltd. concentrates on the development and marketing of sustainable and functional films that support human health and safety, such as new energy films, bio-based biodegradable films and functional BOPA films, which represent the world's largest production and sales volume in these categories.
Xiamen Changsu Industrial Co., Ltd. has been awarded the first Chinese member of the UN FAO SAVE FOOD initiative and contributes to the innovation of material solutions for global food safety. As a result of continuous innovations in material technologies, Xiamen Changsu Industrial Co., Ltd. aims to create a safer, healthier and more sustainable environment.
